Foot switch (without guard)

Application: Triggering machines and devices (printing, screen printing, dosing devices, etc.). Unwanted sliding of the foot switch is prevented by rubber feet.
Material: The trigger mechanism is made of polyacetal, filled with glass beads, and the housing is made of polyamide, reinforced with glass fibers. Using the best materials and very robust construction ensures reliable operation and long service life.
Permissible load: 16 (4,0) A/250
Degree of protection: IP 22 according to DIN 40050

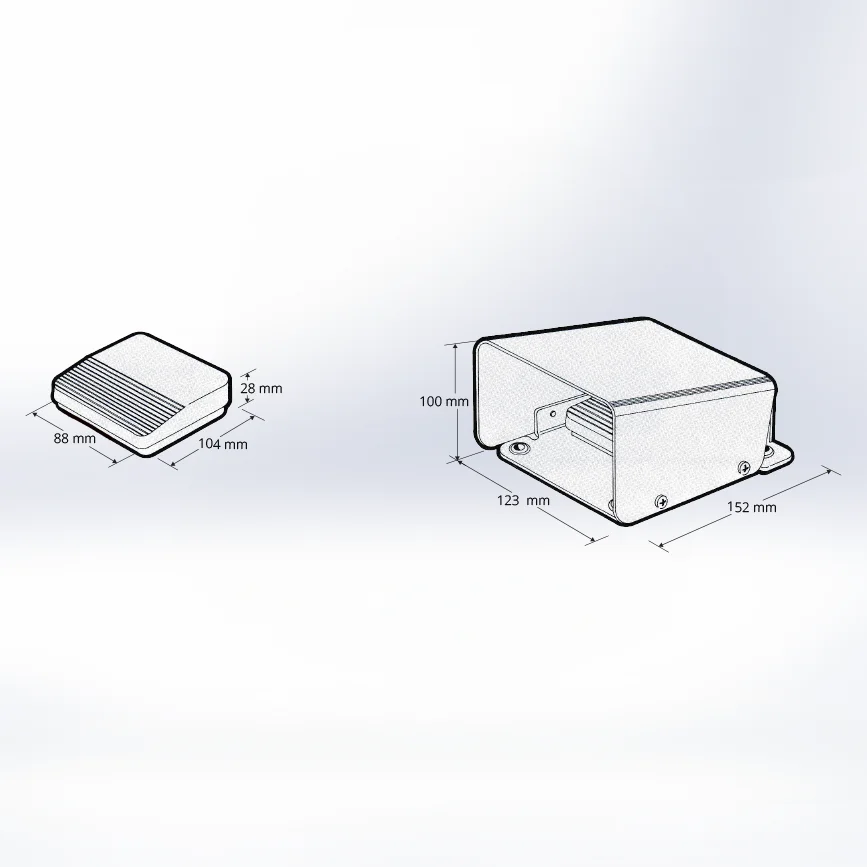

Dimensions: Length: 104 mm, Width: 88 mm, Height: 28 mm
Weight: 118 g
Switching method: Alternating contact, solder connection
